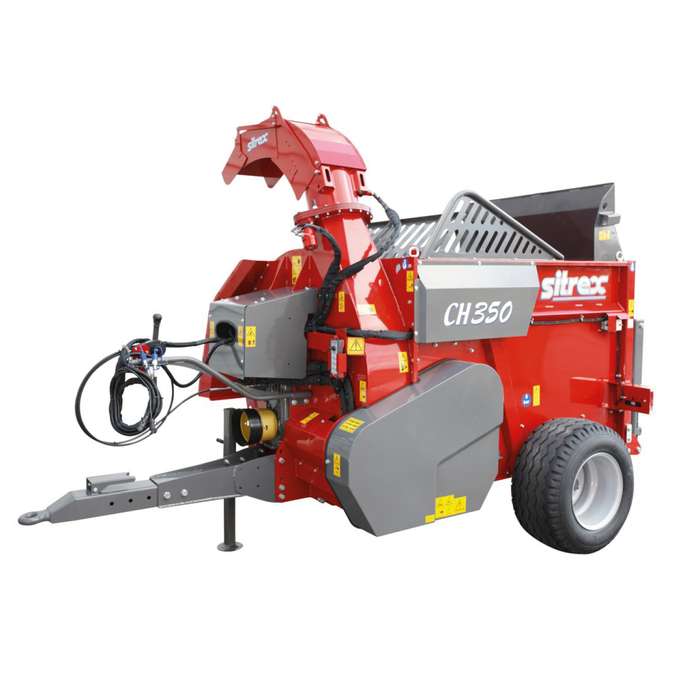

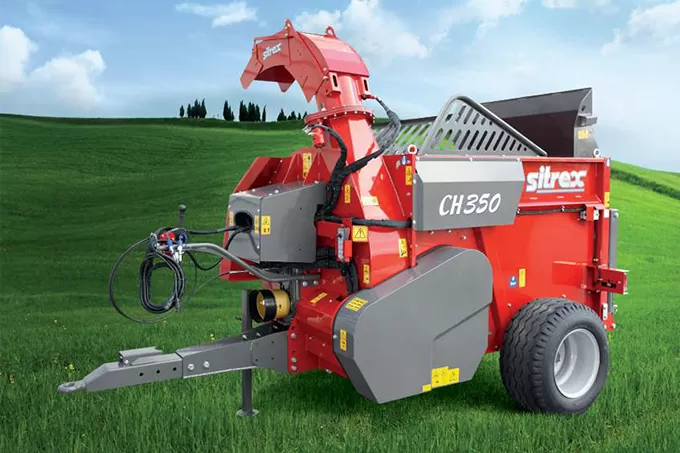

Sitrex CH350
The Sitrex AGM CH-350 is a multipurpose machine, capable of feeding out round and square bales, or being loaded with silage.
Also adept at cutting and blowing straw bales for fast and efficient distribution of livestock bedding.
Quality heavy-duty construction built to EU standards in Italy, this machine is simple and intuitive to operate.
Total length = 4130 mm
Mixing tank volume = 3.5 m³
Empty weight = 2.200 kg
Minimum power required = 48 KW - 66 Hp
Min. oil flow and max. pressure = min. 30 L - max 150 bar
Controls = Electric with joystick
Attachments to the tractor = 2 - quick coupling
Max. load round bales = 2 - diam. 1800 mm
Max. load square bales = 1300 X 900 X 2700
Turbine diam. = Ø 1500 mm
Number of throwing blades = 8
Turbine two-speed gearbox = min. 280 max 540
Cutting rotor = 1 L=1400 diam. 530 mm
Number of knives = 72
Rotor rpm = 450
Number of counter-knives = 13
