522HDR60S

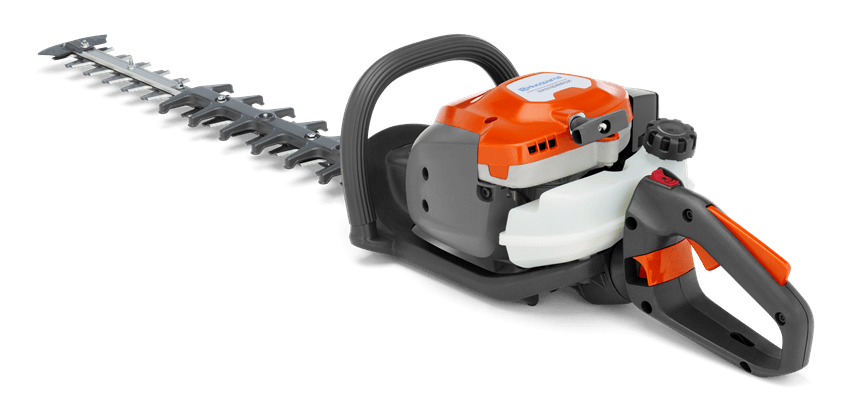

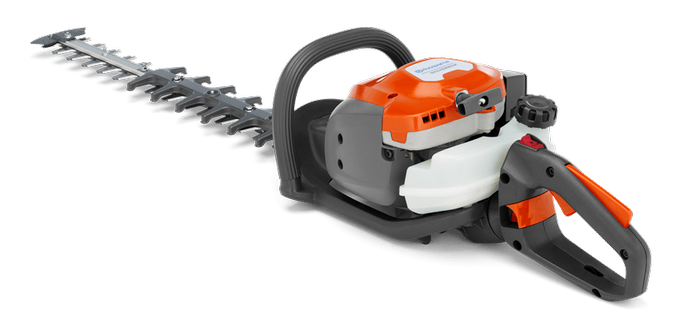

A 21.7cc, double-sided hedge trimmer with a 24" cutter bar and high torque gear for tougher cuts. Reliable and durable construction guarantee long maintenance and service intervals. The multi-position handle and low weight provide excellent handling, while the high capacity blades, open blade guard and impressive cutting capacity delivers reliability and high work output.
Cylinder bore : 32 mm
Cylinder displacement : 21.7 cm³
Cylinder stroke : 27 mm
Electrode gap : 0.5 mm
Engine Family CARB : MHVXS.0224EC
Engine Family EPA : LHVXS.0224EC
Gear ratio : 5.70
Ignition module air gap : 0.3 mm
Spark plug : NGK CMR6A
Clutch engagement speed (±120) : 4400 rpm
Clutch engagement upper limit : 6000 rpm
Cutting speed : 3200 cut/min
Idling speed : 3000 rpm
Idling upper limit : 4400 rpm
Maximum power speed : 7800 rpm
Power output : 0.6 kW
Racing speed lower limit : 8200 rpm
Teeth opening : 30.5 mm
Article gross weight : 7500 g
Article net weight : 6500 g
Knife Length : 60 cm
Product Size, LxWxH : 110.5x24.3x18.6 cm
Weight : 5.1 kg
Weight (excl. cutting equipment) : 5.1 kg
