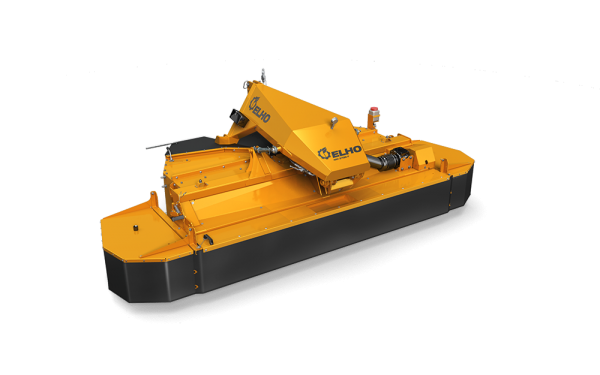

NM3700F
World’s widest front mower conditioner
The ELHO NM 3700 F is the world’s widest single-beam front mower conditioner. With a cutting width of 3.7 metres, this model is extremely productive. The conditioner is also very effective at high speeds and in thick growth.
The Pendulum Center System (PCS) enables the mower conditioner to move freely, while HydroBalance enables it to lightly follow the field surface. This helps prevent contaminants from being lifted into the forage and also reduces fuel consumption.

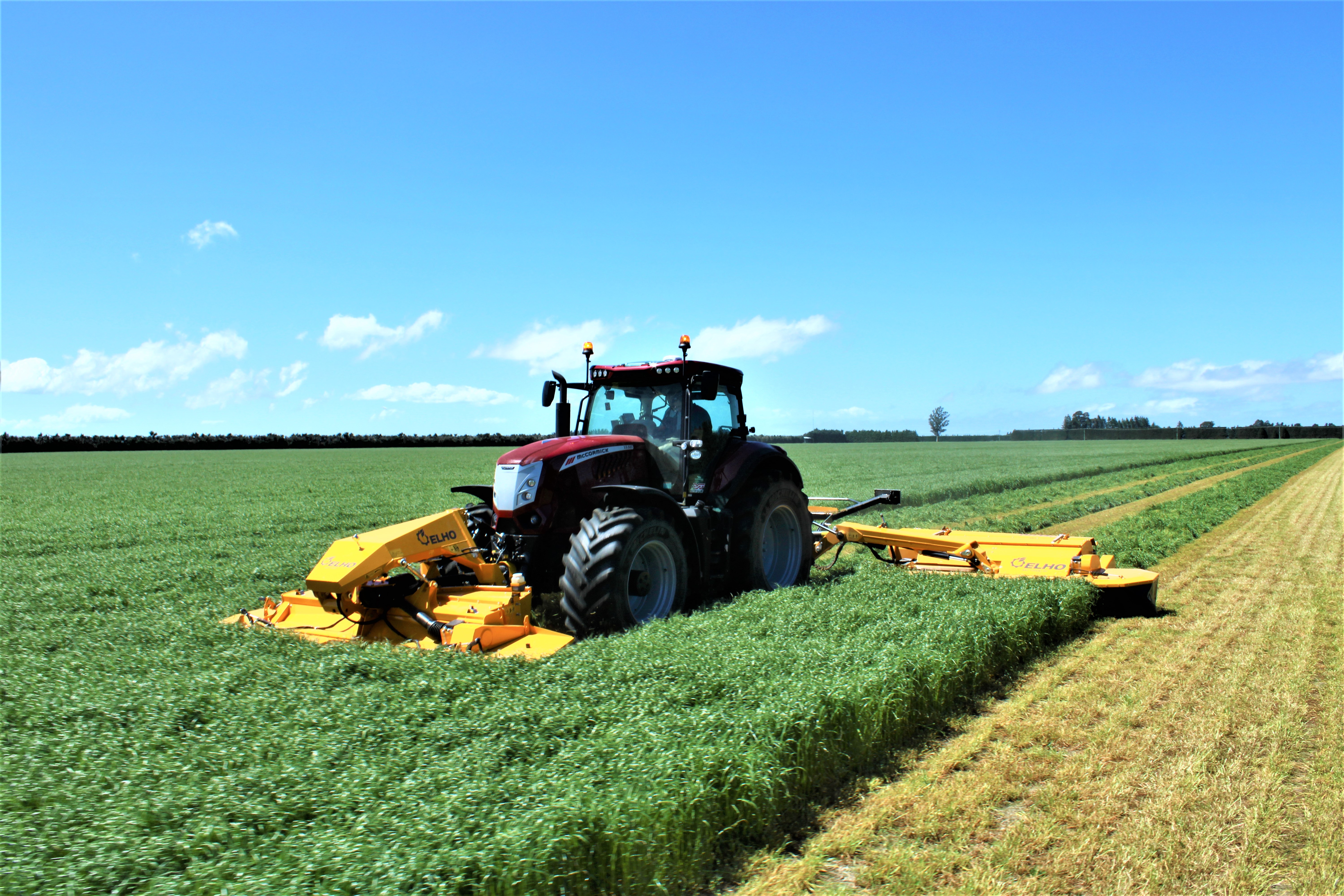

The NM 3700 F front mower conditioner together with an NM 10500 butterfly mower conditioner is an extremely productive combination. Smart automation and GPS assistance also make it easy to use.
Tractor power requirement, min/max = 70-100kw
Minimum recommended tractor weight = 6000kg
Working width = 3.7m
Number of discs = 9
Adjustable skid shoes = Yes
Round forged steel finger conditioner = Yes
Rotor width = 2500mm
Rotor speed = 920rpm
Swath width = 1.2 - 1.8m
HydroBalance suspension = Yes
HydroActive release = Yes
Transport width = 3.5m
Weight = 1250kg
PTO speed = 1000 RPM
Hydraulic coupling, single action = 1
Hydraulic pressure, min/max bar = 150-210
3 point linkage = Cat.2/3N
