NM9000

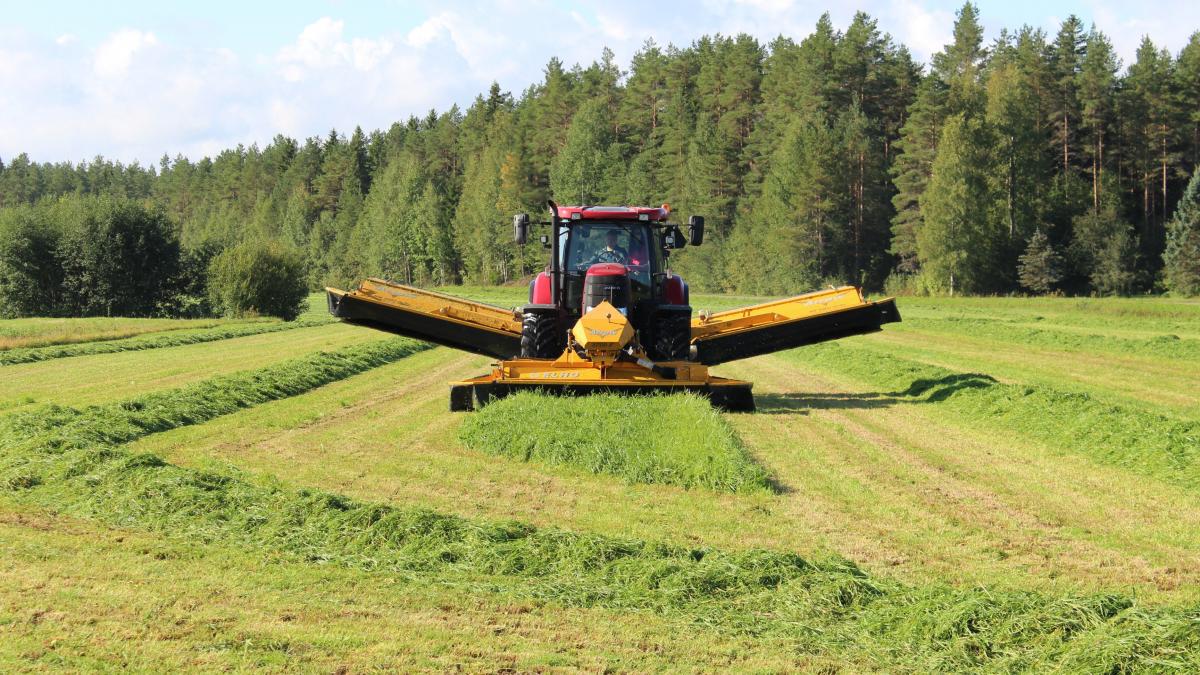

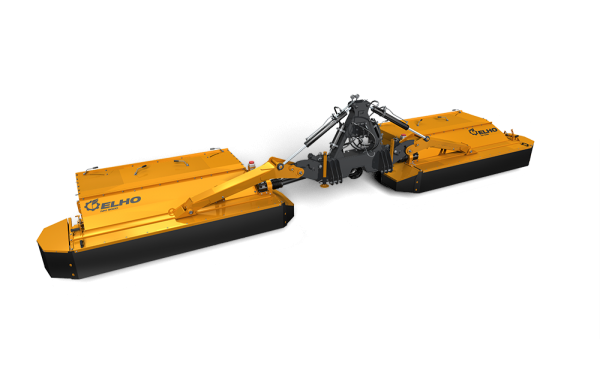

The ELHO NM 9000 butterfly mower conditioner is powerful and reliable!
The ELHO NM 9000 butterfly mower conditioner does not require a large tractor – a medium size tractor is sufficient. The NM 9000 is the ideal mower conditioner for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection.
The steel finger conditioner and adjustable counter bar facilitate quick drying. The machine is operated with the tractor’s own control system.
Tractor power requirement, min/max = 150-180kw
Minimum recommended front mower = 3.2m
Working width = 9m
Number of discs = 16
Adjustable skid shoes = Yes
Round forged steel finger conditioner = Yes
Rotor width = 2 x 2500mm
Rotor speed = 920 RPM
Swath width = 2 x 1.3 - 2.1m
HydroBalance suspension = Yes
HydroActive release = Yes
Transport width = 3m
Height in transport mode = 3.7m
Weight = 2500kg
PTO speed = 1000 RPM
Hydraulic coupling = 2 single action
Hydraulic pressure, min/max = 140-210bar
3 point linkage =Cat.2/3
