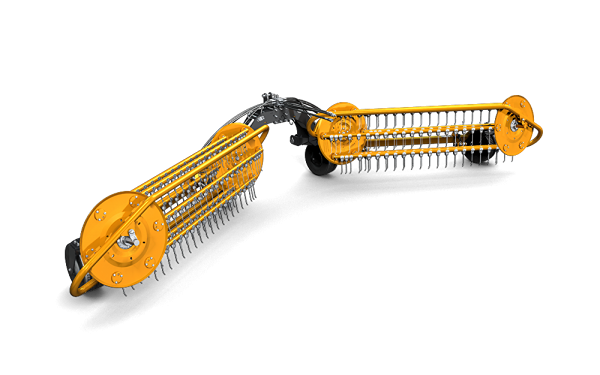

V-Twin 600
The ELHO V-Twin 600 is a cost-effective swather!

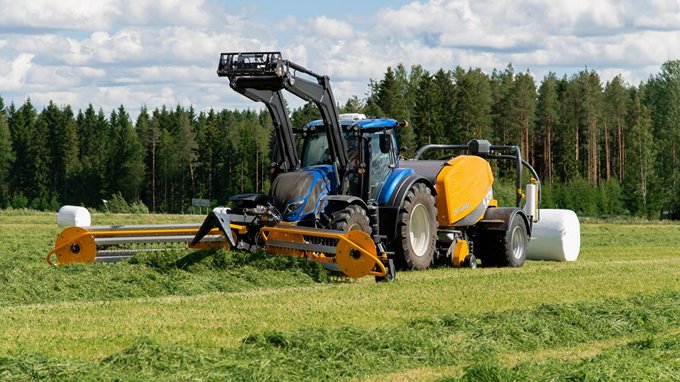

The ELHO V-Twin 600 front-mounted swather enables you to utilise the full capacity of a rear-mounted harvester. The V-Twin 600 swather is designed to swath all types of forage cleanly, gently and efficiently. The V-Twin 600 leaves the forage to dry until harvesting. Swathing and harvesting simultaneously saves time and fuel and reduces driving in the field. Harvesting is also more efficient when swaths have more forage. Recommended combinations include an ELHO V-Twin 600 at the front and a baler, baler-wrapper or self-loading trailer at the back of the tractor. Increase efficiency and ensure top quality forage!
Working width : 6m
Swath width : 1.2-1.3m
Swath width adjustment : hydraulic
Swath width adjustment : mechanical
Tine pattern : 6
Rotor diameter : 655mm
Number of rake tines : 240
Transport width : 2.4m
Transport height : 3.4m
Transport length : 2.1m
Tyre size : 18X8.5-8
Weight : 860kg
Hydraulic coupling, single action : 2
Hydraulic coupling, double action : 1
Hydraulic connection-free return : 1
Number of hydraulic motors : 2
Required oil flow : 25l/min
Hydraulic pressure : 175-210bar
3 point linkage : Cat.2
Front linkage : Cat.2
