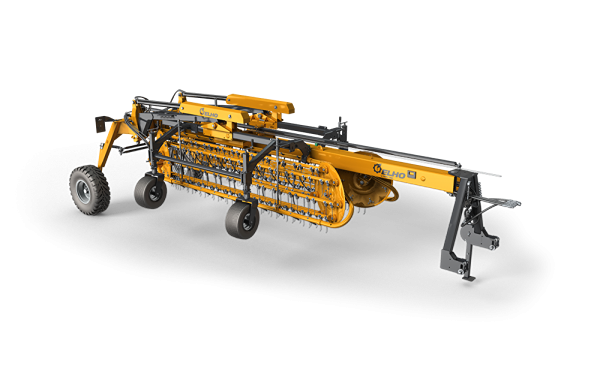

V-Twin 750

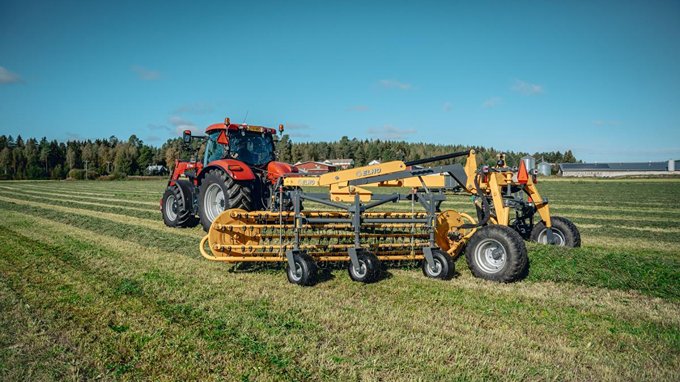

The ELHO V-Twin 750 swather produces clean forage efficiently with a working width up to 8 metres!
The ELHO V-Twin 750 swather is equipped with HydroBalance suspension to ensure that the machine follows the ground surface smoothly and the forage stays clean. It also features double rotors that lift the forage and move it in the air it to the centre. The swath width can be optimised according to the harvester.
A flexible working width of 3–8 metres that can be adjusted from the cab while driving makes the V-Twin 750 ideal for scattering and irregular sections as well. The size of the forage harvester does not matter, as the rotors are designed to create a clean, regular and fluffy swath as wide as necessary that is easy to pick up. The multi-tined rotors also reduce the risk of clogging.
Swathing with a harvester reduces the number of kilometres driven, increases the efficiency of harvesting and improves the quality of the forage. ELHO swathers offer forage producers and contractors numerous benefits!
Working width : 3.0-8.0m
Swath width : 1.3-1.8m
Swath width adjustment : mechanical
Tine pattern : 7
Rotor diameter ; 655mm
Number of rake tines : 336
Transport width : 2.6m
Transport height : 1.8m
Transport length : 6.9m
Tyre size : 300/80-18.3
Weight : 2170kg
Hydraulic coupling, single action : 2
Hydraulic coupling, double action : 1
Number of hydraulic motors : 2
Required oil flow : 25l/min
Hydraulic pressure : 175-210bar
3 point linkage : Cat.2
