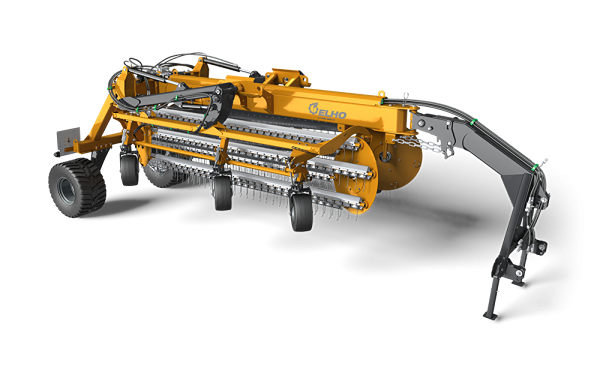

V-Twin 950 Super

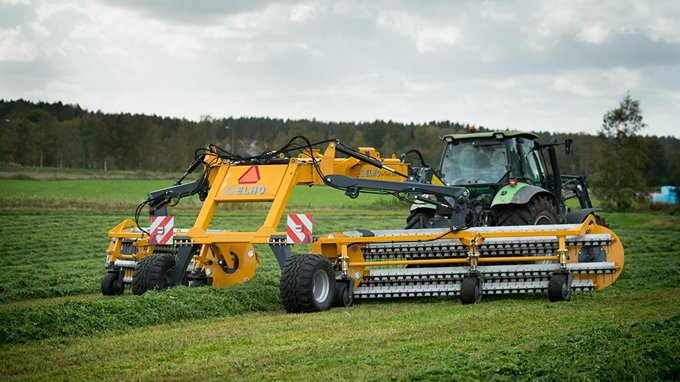

The new ELHO V-Twin 950 Super swather produces clean forage efficiently with a working width up to 9.5 meters!
As harvesters become more powerful, they have the capacity to pick up swaths with more forage. ELHO has developed a new wider trailed swather: the V-Twin 950S with a hydraulically adjustable working width of 4.5–9.5 meters.
The new V-Twin 950S is equipped with HydroBalance suspension to ensure that the machine follows the ground surface smoothly. It also features double rotors that lift the forage and move it in the air it to the center. This results in top-quality forage. The swath width can be optimized according to the harvester.
The standard V-Twin 950S model can also shift the swather to the right or left side of the tractor. This is useful especially if the space between the swaths is small and you want to avoid driving on the swaths. Another standard feature is the possibility to use only one of the rotors for swathing.
The V-Twin 950 S can be easily prepared for transport. The machine is narrow and relatively low compared to its working width.
Swathing with a harvester reduces the number of kilometers driven, increases the efficiency of harvesting and improves the quality of the forage. ELHO swathers offer forage producers and contractors numerous benefits!
Working width : 4.5-9.5m
Swath width : 1.3-2.2m
Swath width adjustment : Hydraulic
Side shift at the draw bar : 1.8m
Tine pattern : 6
Rotor diameter : 860mm
Number of rake tines : 476
Transport width : 2.4-3.2m
Transport height : 2.8m
Transport length : 7.8m
Tyre size : 500/50-17.5
Weight : 3500kg
Hydraulic coupling, single action : 2
Hydraulic coupling, double action : 1
Hydraulic connection-free return : 1
Number of hydraulic motors : 2
Required oil flow : 35l/min
Hydraulic pressure : 175-210bar
3 point linkage : Cat.2
Electrical connection : 12V/10 Amp
