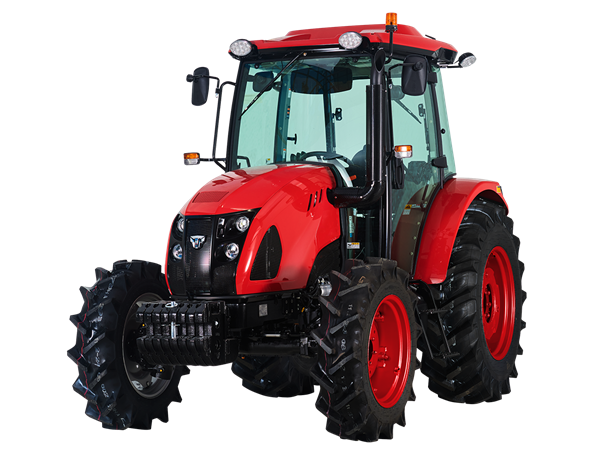

T1003
With engineering that enhances efficiency and deluxe features that you expect of a TYM utility tractor, the T1003 enables all-round productivity, for your operations.
Powered by 99.5hp Perkins 4 cylinder Diesel engine
Fuel efficient, reliable. powerful and rugged engine
4400cc engine for high performance in heavy duty applications
Dual dry element air cleaner for Australia's dusty conditions
126 litre fuel tank capacity will provide for many working hours
Easy access from ground level
The tractor weight of 3685kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
32 forward / 32 reverse manual powershuttle allows you to shift forward and reverse without using a clutch
Powershuttle allows you to shift forward and reverse without using a clutch
4 Ranges with range lever located to operator's right
0-40km/h maximum speed
The heavy duty front axle performs in tough working conditions and handles loads with ease
Rear axle with diff-lock for difficult traction situations
4WD and the diff-lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator
Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations
Control for the linkage and hydraulic remotes are on the right-hand side
Adjustable linkage lift speed
3-point linkage with quick attach lower link arms
Linkage arms with simple pin adjustable sway position
3-point linkage with 3110kg lifting capacity gives the tractor great versatility and range of applications
Adjustable lower link stabiliser arms
External button for ease of operating 3 point hitch out of cab
3 sets of double-acting hydraulic remotes
The PTO driveline is a simple and direct design for high efficiency and power
The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage
Adjustable front and rear wheels to vary or widen track width for steep conditions to improve stability
Wide door entry for easy access
Uncluttered flat floor without trip hazards
Rubber floor mat reduces noise and provides an easy to maintain surface
Plenty of leg room
Sunroof
Ergonomic design with easy to reach controls
Easy to read instrument panel
Combination switch controls lights and indicators
Digital forward speed display
Tiltable steering wheel
Fully integrated joystick for control of front end loader with electric button for third function operation (when loader is fitted)
Adjustable air suspension seat with arm and headrest for comfort
Air-conditioned cabin with heating
Radio/MP3/USB/SD Player
Internal and external rear vision mirrors
Rear windscreen wiper & washer
Rear external cabin work lights
Pop-up 1 piece bonnet
Easy access to all maintenance areas including battery
Radiator with removable screen to prevent clogging

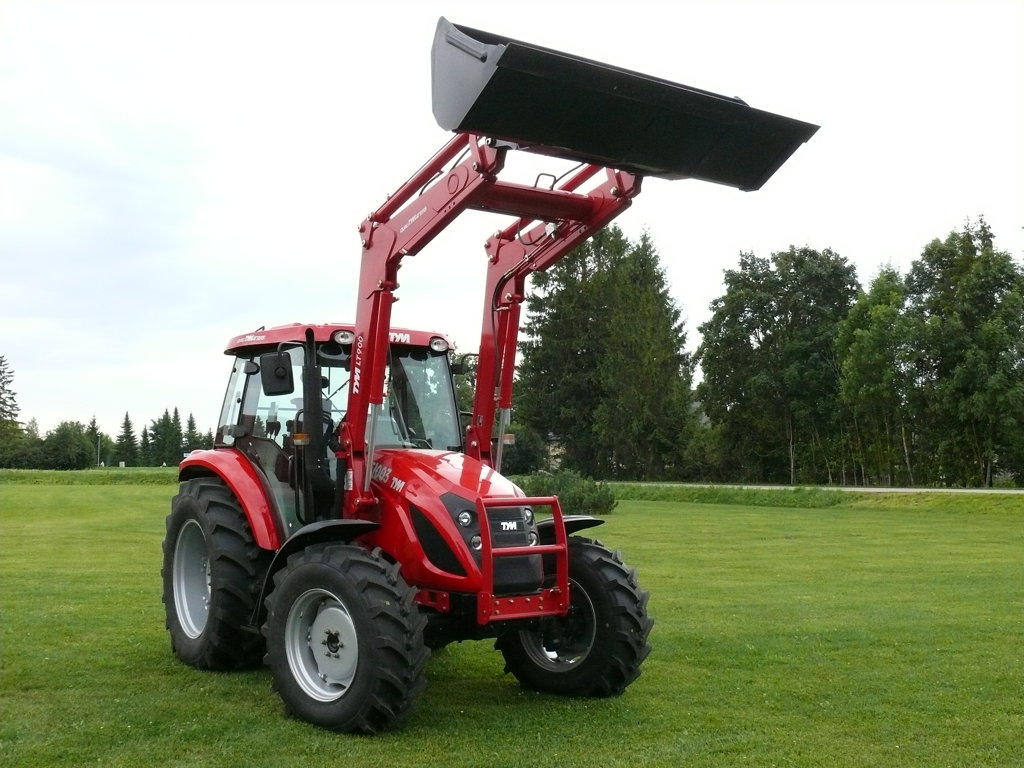

Level lift front-end loader ideal for materials handling and utility work around the farm
Euro hitch with quick release
