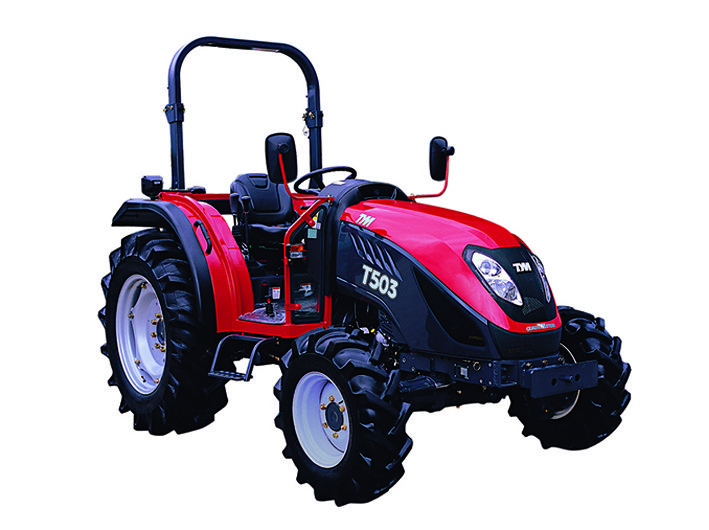

T503

Powered by 50hp Perkins naturally aspirated 4 cylinder water-cooled Diesel engine
Perkins Diesel is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support
Engine certified to meet the stringent Tier III engine and noise emission standards

Load sensing control prevents engine from stalling during heavy loads
Cruise control with increase/decrease button
2216cc engine with 142.7Nm of torque at 1800rpm
A generous engine capacity of 2216cc, resulting in high torque for serious work
Dual dry element air cleaner for Australia's dusty conditions
A large capacity 60 litre fuel tank for many working hours between refueling

The tractor weight of 1710kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
See optional front end loader for details

Three (3) range Hydrostatic transmission gives infinitely variable driving speed from stationary to 26 km/h in forward or reverse direction
Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation
Ergonomic side by side foot control reduces fatigue and errors
Mode sensitivity switch allows the operator to change HST pedal response time through 3 different modes

The heavy duty front axle performs in tough working conditions and handles loads with ease
A long wheel base and wide stance increases stability in all conditions

Rear axle with diff-lock for difficult traction situations
4WD and the diff-lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator

Inboard wet disc brakes can be split for independent left and right side braking to assist turning in tight situations

Controls for the linkage and hydraulic remotes are on the right-hand side
The 3-point linkage has postition and draft control
Draft control automatically lifts the ground-engaging implement from the soil when excessive load is experienced
Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements

2 sets of double-acting hydraulic remotes
Category 1 3-point linkage with 1503kg lifting capacity gives the tractor great versatility and range of applications
Telescopic extendable lower link arms for easy implement connections

The PTO driveline is a simple and direct design for high efficiency and power
The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

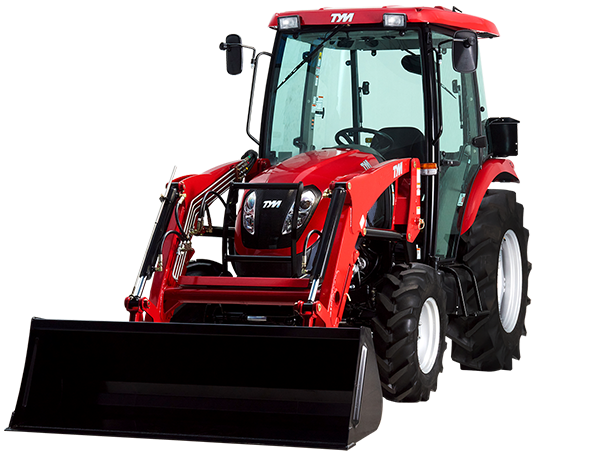

Air-conditioned cabin with sunroof and CD player
Ergonomic design with easy to reach controls
Easy to read instrument panel
Side mounted cabin air intake filters
Digital hour meter display
PTO On/Off Switch
Side opening windows
Front and rear windscreen washers and wipers
Front and rear cabin mounted working lights

Tiltable steering wheel

Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
See optional front end loader for details

Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
Uncluttered flat floor without trip hazards is the largest surface area in its class
Rubber floor mat reduces noise and provides an easy to maintain surface

Adjustable suspension seat for comfort
