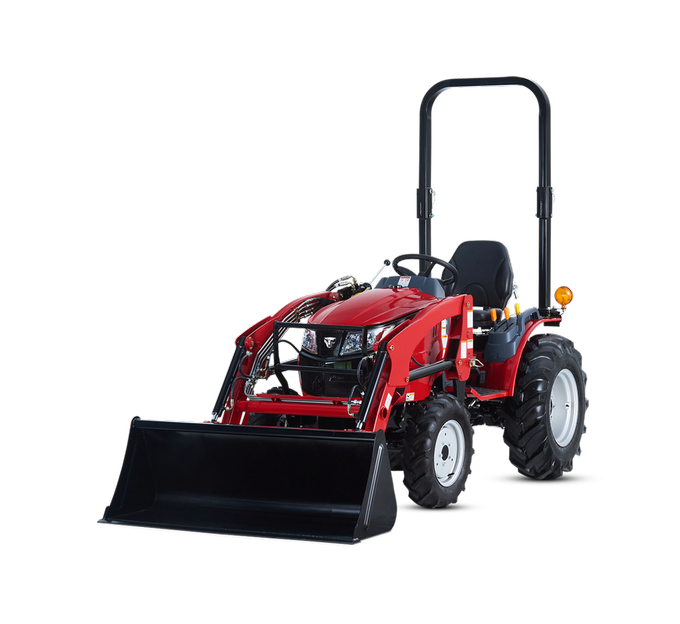

TS25

Powered by 25hp Tier 4 Yanmar 3 cylinder water-cooled Diesel engine for optimum performance
Yanmar is a global engine manufacturer of quality, giving you the confidence in relaibility and after-sales support
Engine certified to meet the stringent Tier 4 engine and noise emission standards
A generous engine capacity of 1267cc , resulting in 60Nm torque for serious work
For added safety when starting the engine the driver must be seated, the brake pedal depressed and the PTO switched off

The tractor weight of 730kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
The high efficiency Hydrostatic transmission gives infinitely variable drive speed in the forward and reverse direction
The Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation.
Hydrostatic power steering lightens steering, which is especially important with front end loaders
Easy lever setting of Cruise control for tireless driving when mowing large areas

Industrial front and rear tyres are forgiving on lawn areas yet still maintain traction where required and are ideal for front-end loader applications
20x8-10 Front Tyers with 5 studs for greater strength
27x12.50 Rear Tyres with 6 studs for greater strength

The heavy duty front axle performs in tough working conditions and handles loads with ease
A long wheel base and wide stance increases stability in all conditions

4WD and the Diff Lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator
Quick response and durable wet disc brake
Ergonically designed foot brake located on LHS of the floor

Easy selection of Mid/Rear PTO which can be operated either independently or simultaneously
Fully independent rear PTO(540rpm) & mid PTO(2000rpm) activated by electro-hydraulic clutch
PTO engagement is easily operated by push button control on the dash
The rear linkage is Category 1 with a large lift capacity of 600kg (at ball ends)
Flat Tow Bar for towing of trailers

The PTO drive is a simple and direct design for high efficiency and power
The PTO clutch is an independent oil immersed clutch pack for long life and simple push button operation

Hydraulic 3 point linkage lowering speed control

The ergonomic design has the controls within easy reach of the operator
The modern instrument panel is easy to read and displays all the essential information

Right Hand Side controls: 3 point linkage lever
