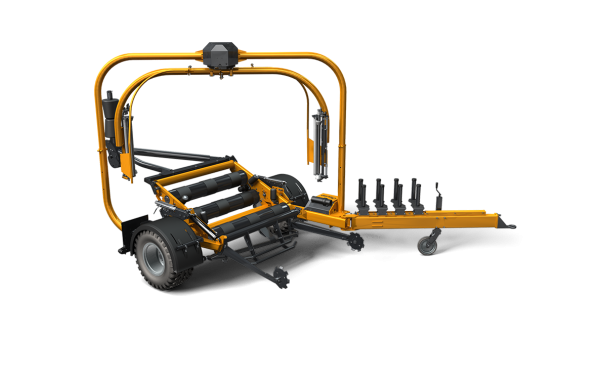

1790 Pro Sideliner

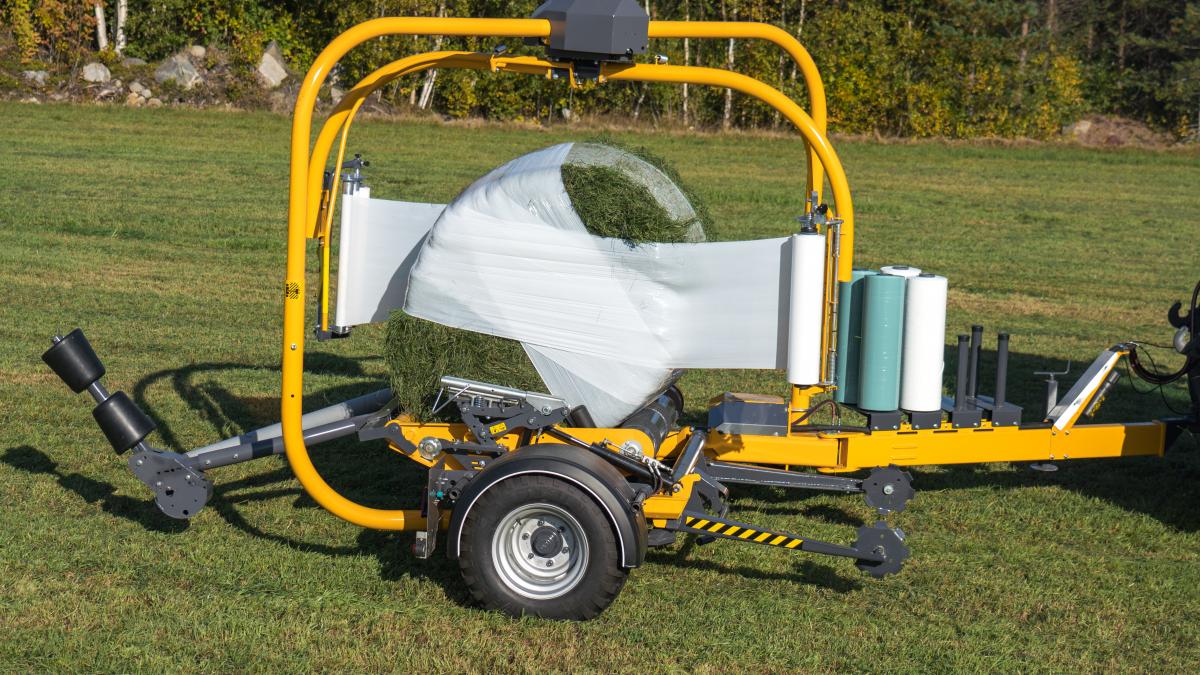

The ELHO Sideliner 1790 Pro is an automatic wrapper for large diameter round bales!
The versatile ELHO Sideliner 1790 Pro can easily wrap bales in sizes up to 1,8 metres in diameter, as the bale loading capacity is an impressive 1600 kilos. The strong loading arms automatically align the bale to the centre of the wrap table. The satellite wrap arms feature dual 750mm plastic pre-stretchers and film break sensors. The hydraulic control of the tow bar ensures a smooth and convenient handling of the wrapper. Other standard features include a light kit and mudguards that keep the wrapper clean even on long transfer journeys.
To make collecting the wrapped bales easier, the Sideliner 1790 Pro can be equipped with a bale turning ramp and a drop mat.
Number of pre-stretchers = 2 (750mm)
Recommended bale diameter = 1 - 1.8m
Recommended bale width = 1.2m
Max bale weight = 1600kg
Max wrapping speed = 45 RPM
Tyre size = 380/55-17
Light kit = Yes
Weight = 1480kg
Length = 4.5m
Width = 2.85m
Height = 2.8 - 3.05m
Oil pressure = 180-200bar
Hydraulic flow max/min = 50/20 lpm
Electrical connection = 12V/10 Amp
Hydraulic coupling, single action = 1
Hydraulic connection-free return = 1
